   NH (S-80mm) KANCALI HıZLı SİGORTALAR


S1MUQ01/80



AMK-1 ADAPTOR

(004349001)





MK SIVIC

(004349003)

   TIP :   STANDARTLAR :   KESME KAPASITESI :   ANMA VOLTAJI:

 S-80mm

  EC 60269-4-1

  DIN 43653

   ~200 kA   ~690V
Boy

In

(A)

Kod

MK Siviç Takılabilir

 Kod No I²t

Guc

(w)

 krkter Adet

Agırlık

(gr
S1 80A S1MUQ01/80/80A/690V 4383713 2.300 15,6 aR 1 500
100A S1MUQ01/80/100A/690V 4383714 4.600 20 aR 1 500
125A S1MUQ01/80/125A/690V 4383715 6.600 25 aR 1 500
160A S1MUQ01/80/160A/690V 4383716 10.000 32,2 aR 1 500
200A S1MUQ01/80/200A/690V 4383717 18.000 39,4 aR 1 500
250A S1MUQ01/80/250A/690V 4383719 32.000 49,4 aR 1 500
315A S1MUQ01/80/315A/690V 4383721 58.000 60 aR 1 500
350A S1MUQ01/80/350A/690V 4383722 78.000 63 aR 1 500
400A S1MUQ01/80/400A/690V 4383723 110.000 66 aR 1 500
450A S1MUQ01/80/450A/690V 4383725 155.000 72 aR 1 500
500A S1MUQ01/80/500A/690V 4383726 200.000 73 aR 1 500
550A S1MUQ01/80/550A/690V 4383727 250.000 78 aR 1 500
630A S1MUQ01/80/630A/690V 4383728 330.000 86 aR 1 500
710A S1MUQ02/80/710A/690V 4743735 470.000 92 aR 1 500
S2
710A S2MUQ01/80/710A/690V 4384729 460.000 91 aR 1 650
800A S2MUQ01/80/800A/690V 4384730 720.000 95 aR 1 650
900A S2MUQ02/80/900A/690V 4744735 920.000 115 aR 1 650
1000A S2MUQ80/1000A/690V 4744736 1.300.000 124 aR 1 650
S3
710A S3MUQ01/80/710A/690V 4385729 330.000 109 aR 1 850
800A S3MUQ01/80/800A/690V 4385730 500.000 117 aR 1 850
1000A S3MUQ01/80/1000A/690V 4385732 1.000.000 131 aR 1 850
1250A S3MUQ01/80/1250A/690V 4385733 2.300.000 152 aR 1 850
1400A S3MUQ02/80/1400A/690V 4745737 2.600.000 156 aR 1 850

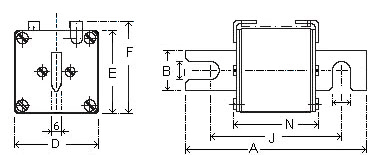

Boy A J N B D E F I
1 110 80 52 24 51 51 56 11
2 110 80 52 30 60 60 65 11
3 110 80 52 37 75 75 80 11
